MA Type Spring Mounts
MA Type Spring Mounts
Product Description:
Characteristic:? The springs are designed with low natural frequencies and treated with ED and paint.? The springs are heat treated and stress relieved for long service life.? The body is treated with Dak rust.? Bottom anti-skid and anti-chattering bolt design, high safety.? It is simple to install and can adjust height and level according to actual nee…
MASSAGECONTACT
Introduction

Characteristic:

? The springs are designed with low natural frequencies and treated with ED and paint.

? The springs are heat treated and stress relieved for long service life.
? The body is treated with Dak rust.
? Bottom anti-skid and anti-chattering bolt design, high safety.
? It is simple to install and can adjust height and level according to actual needs.
? It can eliminate mechanical structural vibration and protect and extend the mechanical life.
? The load deflection is 25mm.

Application:
? All kinds of heavy machinery.
? Ice main unit, cooling tower
? fire pump, exhaust fan.
? Generators, air compressors.

MA Type Spring Mounts

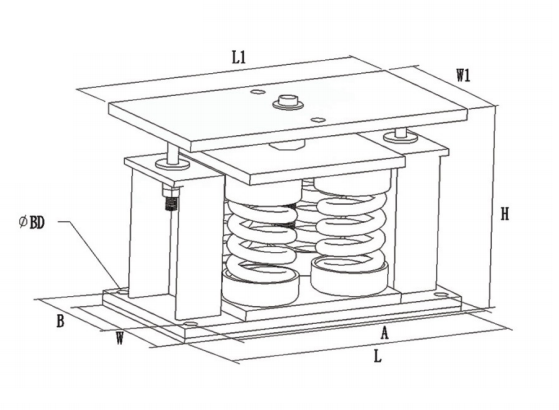

specification

Size（mm）

fixed

bolt

L

W

L1

W1

A

B

H

ФBD

MA-1

260

100

210

100

230

0

200

16

M12

MA-2

235

220

235

120

195

180

200

16

MA-4

320

165

320

165

290

135

220

14

MA-6

400

170

400

170

370

140

220

18

MA-9

420

250

420

250

384

214

220

18


model

Load range

Kg

Coefficient of elasticity

Kg/mm

Applicable deflection

mm

Spring color

MA-1-100

90-110

4.2

25

yellow

MA-1-200

160-210

7.1

25

green

MA-1-300

220-320

10.8

25

red

MA-1-400

360-430

14.2

25

blue

MA-1-500

470-530

19.2

25

brown

MA-1-600

530-650

22.6

25

gray

MA-1-700

650-700

26.0

25

White

MA-1-850

700-850

33.6

25

earth

MA-1-1000

850-1000

46.0

25

Dark green

MA-2-800

700-850

28.4

25

blue

MA-2-1000

950-1050

38.3

25

brown

MA-2-1200

1050-1250

45.2

25

gray

MA-2-1400

1250-1400

52.0

25

White

MA-2-1700

1400-1700

68.0

25

Yellow

MA-2-2000

1850-2150

92.1

25

Dark green

MA-4-1200

880-1300

43.2

25

red

MA-4-1600

1450-1700

56.8

25

blue

MA-4-2000

1800-2000

76.6

25

brown

MA-4-2400

2000-2400

90.3

25

gray

MA-4-2800

2400-2800

103.2

25

White

MA-4-3400

2800-3400

136.0

25

Yellow

MA-4-4000

3200-4000

184.1

25

Dark green

MA-6-3600

3000-3600

135.5

25

gray

MA-6-4200

3600-4200

155.9

25

White

MA-6-5100

4200-5100

204.0

25

Yellow

MA-6-6000

4600-6100

276.0

25

Dark green

MA-9-5400

4700-5800

216.0

25

gray

MA-9-6300

5800-6400

252.0

25

White

MA-9-7500

6500-7500

305.0

25

Yellow

MA-9-9000

7600-9000

359.0

25

Dark green
