Characteristic:
? The springs are designed with low natural frequencies and treated with ED and paint.
? The springs are heat treated and stress relieved for long service life.
? The body is treated with Dak rust.
? Bottom anti-skid and anti-chattering bolt design, high safety.
? It is simple to install and can adjust height and level according to actual needs.
? It can eliminate mechanical structural vibration and protect and extend the mechanical life.
? The load deflection is 25mm.
Application:
? All kinds of heavy machinery.
? Ice main unit, cooling tower
? fire pump, exhaust fan.
? Generators, air compressors.

model  |
 Load range kg  |
 Coefficient of spring Kg/mm  |

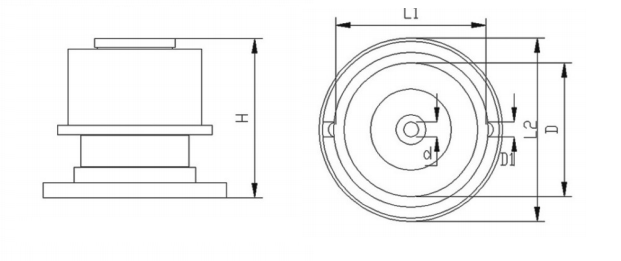

 Applicable deflection mm  | size mm  | |||||
 H  |
 D  |
 L1  |
 L2  |
 d  |
 D1  | ||||
MC-030  | 20-30  | 1.2  | 25  | 105  | 103  | 100  | 120  | 12  | 10  |
MC-050  | 30-50  | 2.0  | 25  | 105  | 103  | 100  | 120  | 12  | 10  |
MC-070  | 50-80  | 2.8  | 25  | 105  | 103  | 100  | 120  | 12  | 10  |
MC-090  | 80-100  | 3.6  | 25  | 105  | 103  | 100  | 120  | 12  | 10  |
MC-120  | 100-130  | 4.8  | 25  | 105  | 103  | 100  | 120  | 12  | 10  |
MC-150  | 130-150  | 6.0  | 25  | 105  | 103  | 100  | 120  | 12  | 10  |
MC-180  | 150-180  | 7.2  | 25  | 110  | 103  | 100  | 120  | 12  | 10  |
MC-250  | 200-250  | 10.0  | 25  | 110  | 103  | 100  | 120  | 12  | 10  |
MC-350  | 250-350  | 14.0  | 25  | 110  | 103  | 100  | 120  | 12  | 10  |
MC-480  | 460-500  | 19.2  | 25  | 110  | 140  | 135  | 165  | 14  | 14  |
MC-640  | 600-650  | 25.6  | 25  | 110  | 140  | 135  | 165  | 14  | 14  |
