Characteristic:
? The surface of the spring is treated with ED and paint, excellent rust resistance and tested by ASTM B-117 and 8886 salt spray test
? Springs are heat-treated and stress relieved, and fatigue resistance is good.
? The spring is directly greater than the downforce to 0.8 times the rated interference height, and the maximum downforce at the spring compression is greater than 50% of the rated disturbance.
? Seismic anti-seismic devices are used internally to provide high safety performance.
? Internally designed damping mechanism effectively avoids resonance.
? All specifications are sealed and sealed with a shell that is resistant to impact and corrosion.
? The Elmite matrix is used to arrange the springs. After loading, the springs are in the best working condition to improve the vibration reduction effect and service life.
? Save time by installing.
model |
Vertical stiffness Kg/mm |

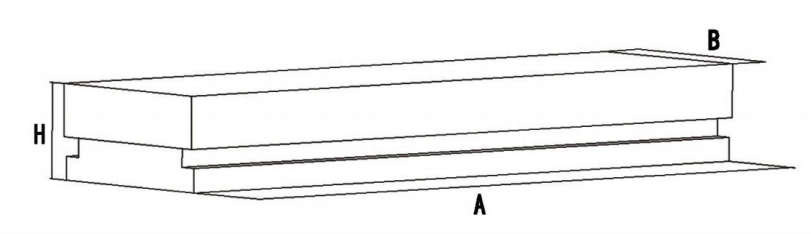

Load range kg | Size(mm) | ||
A
|
B |
H | |||
BK-MT-93H800 | 32.0 | 720-880 | 900 | 300 | 150 |
BK-MT-93H1200 | 48.0 | 1100-1600 | 900 | 300 | 150 |
BK-MT-93H1600 | 64.0 | 1280-1680 | 900 | 300 | 150 |
BK-MT-93H2400 | 96.0 | 200-2450 | 900 | 300 | 150 |
BK-MT-93H3200 | 128.0 | 2800-3200 | 900 | 300 | 150 |
BK-MT-123H800 | 32.0 | 720-880 | 1200 | 300 | 150 |
BK-MT-123H1200 | 48.0 | 1100-1600 | 1200 | 300 | 150 |
BK-MT-123H1600 | 64.0 | 1280-1680 | 1200 | 300 | 150 |
BK-MT-123H2400 | 96.0 | 200-2450 | 1200 | 300 | 150 |
BK-MT-123H3200 | 128.0 | 2800-3200 | 1200 | 300 | 150 |
